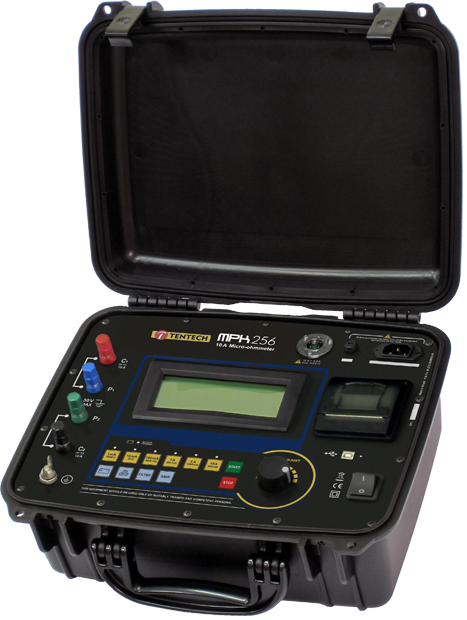

MPK256

10 A micro-ohmmeter

  • Microprocessor controlled
  • Alphanumerical display
  • Direct reading (up to 4½ digits)
  • Resolution: 1 μΩ
  • Resistance reading: up to 2000 Ω
  • 0.1 % basic accuracy
  • U/I (4-wires) measurement
  • USB Data output
  • Rechargeable battery
  • Remote control through an Android™ app
symbolssymbolssymbols
MPK256

Description

The MPK-256 digital very low resistance ohmmeter is a portable, microprocessor-controlled instrument used to accurately measure resistances of switches and circuit breaker contacts, transformer and motor windings, wire and cable samples, joints in busbars, etc., using test currents from 1mA up to 10 A.

It uses the Kelvin-type, four-terminals measurement principle, thus eliminating errors caused by lead and contact resistances.

Resistance readings are shown in the alphanumeric display with up to a 4½ digit-resolution. It allows to measure resistances of up to 2,000 Ω, with a resolution down to 1 µΩ.

Measurements accuracy is guaranteed by the state-of-the-art system for signal amplification, offset-free and with long-term stability.The equipment has a USB interface that allows to download the measured values to a computer for their later analysis.

The open circuit output voltage is of up to 10 V, depending on the selected test current, reducing the stabilization time for the test current when highly inductive elements are measured.

The measurement circuit has an effective protection against voltage peaks originated by those inductances.

Operation is very simple: Just connect the leads, switch-on the equipment, select the test current and press the start button. After a few seconds (depending on inductance of the element), direct reading appears on the display with the measure unit indication (Ω, mΩ or µΩ). If it is necessary, the display will show messages to help the operator (Low battery, Over range, etc).

The equipment is housed in a rugged plastic case with a hinged lid and carrying handle. It is a portable, strong, impact resistant and lightweight equipment, suitable to be used in field, under severe weather conditions. It supplies very reliable and accurate measurements both in laboratory and out in the field.

Technical specifications

Test currents

1 mA - 10 mA - 100 mA - 1 A - 5 A - 10 A.
Each current may be continuously adjustable from 0 to 100 %.

Resistance ranges

0-200 mΩ @ 10 A.
0-1000 mΩ @ 5 A.
0-200 mΩ @ 1 A.
0-2000 mΩ @ 100 mA.
0-20 Ω @ 10 mA.
0-2000 Ω @ 1 mA.

Resolution

1 μΩ @ 10 A.

Output voltage

Up to 10 VDC (open circuit) @ 1 A.

Measurement principle

Four-terminal, Kelvin-type.

Basic accuracy

±(0.2% of reading ± 2 digits).

Advanced features

Digital direct reading of very low resistances in the alphanumerical display, with up to 4½ digits Very fast and accurate measurements.

Serial data output

USB.

Environmental protection

IP54 (with closed lid).

Safety class

Meets the requirements of IEC 61010-1.

Power supply

Rechargeable LFP battery 12 V, 6000 mAh or 100 - 240 V~ mains supply.

Built-in battery charger

For 100 - 240 V~ mains supply or auxiliary 12 V supply input.

Operating temperature range

23 °F to 122 °F (-5 °C to 50 °C).

Storage temperature range

-13 °F to 158 °F (-25 °C to 70 °C).

Humidity range

95 % RH (non condensing).

Equipment weight

Approx. 14.33 lb (6.5 kg).

Dimensions

14.88" x 12.13" x 6.89" (378 x 308 x 175 mm).

Remote control by Android device

This instrument has Bluetooth® interface and can be controlled remotely via an Android™ smartphone / tablet running the TENTECH's remote control application.

Google Play Logo

Go to Google Play Store

• Android™ and Google Play™ Store are trademarks of Google, Inc.
• Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.

Desktop software

Equipment's internal memory can be accessed by a desktop software that allows to download all memory data. It also can be used to make analysis of the test results and automatic report generation.

T-Logger (Windows 32 bits) T-Logger (Windows 64 bits)

Rechargeable battery (LiFePO4)

Expected lifetime
2,000 charge / discharge cycles (average).

Low self-discharge
When the equipment is not in use, battery charge decreases with time at a much lower rate than other battery technologies.

Safety
In contrast to other lithium battery technologies commonly used, LFP batteries are thermally and chemically stable, significantly improving battery safety.
