HP60KV

Smart hipot DC up to 60 kV

  • Output voltage up to 60 kVDC
  • Leakage current up to 6 mA
  • Can be fully remote controlled from an Android™ device
  • Lightweight, portable and robust, designed for field use
  • Measures output voltage and leakage current
  • "Pass / Fail" LED indicator
  • Adjustable parameters: voltage, maximum leakage current, ramp and test duration
  • Ripple <2%
  • USB and Bluetooth interface
  • Built-in memory
symbolssymbolssymbols
HP60KV

Description

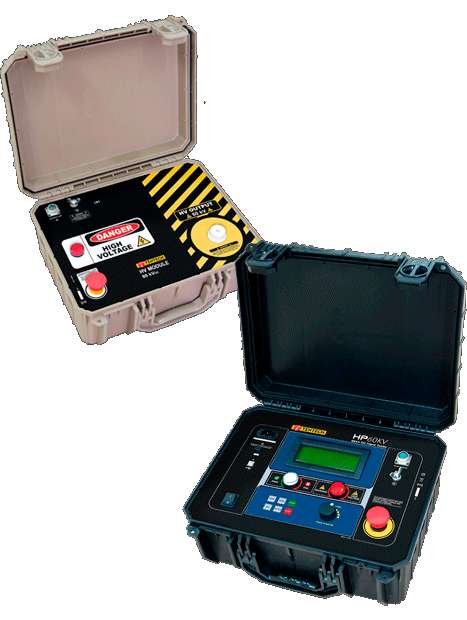

Tentech's HP60KV smart DC hipot is a cutting-edge dielectric test instrument designed with an emphasis on operator safety, versatility and ease of use. Complying with the most rigorous safety requirements, the system is divided into two modules, a control unit and a high voltage generation unit.

Additional safety features include an emergency stop switch and a built-in sound alarm. Furthermore, the ability to fully remote control the instrument from an Android device — both to program the settings as well as to perform the tests — provides increased safety protection and greater comfort for the operator.

HP60KV’s built-in microprocessor allows the user to adjust the output voltage, test duration, maximum leakage current and ramp slope, allowing for more complex tests to be carried out automatically.

Technical specifications

Test voltage

2,000 V up to 60,000 V.

Test Voltage Resolution

100 V between 10 kV and 60 kV.
10 V up to 9.99 kV.

Test voltage accuracy

± (2% of nominal value ± 2 digits) with 1 mA load.

Polarity

Negative voltage, ground positive.

Leakage current

Max. 6 mA.

Leakage current resolution

0.01 mA.

Leakage current accuracy

± (2% of nominal value ± 2 digits).

Display

Alphanumeric.

Ripple

< 2%.

Safety features

Remote control via Bluetooth.
Emergency stop buttons.
Self-detection of sparks.
Visual indicators (LEDs).
Sound indicator.

PC interface

USB.

Advanced features

Ramp test.
"Pass / Fail" and fixed-time tests.
Internal memory.

Built-in chronometer

Up to 20 min., indication in seconds.

Software

It allows to transfer the data stored in the equipment memory to a PC, to analyze them, to present the results in tables and graphs, to generate reports of the tests.

Environmental protection

IP54 (with closed lid).

Safety

In accordance with IEC 61010-1.

Power supply

195 - 240 V~ 50/60 Hz 450 VA

Operating temperature

14 °F to 122 °F (-10 °C to 50 °C).

Storage temperature

-13 °F to 158 °F (-25 °C to 70 °C).

Humidity range

95% RH (non condensing).

Equipment weight

Control module: approx. 16.76 lb (7.6 kg).
High voltage module: approx. 21.16 lb (9.6 kg).

Dimensions

Control module: 17.5" x 14.2" x 7.5" (450 x 360 x 190 mm).
High voltage module: 17.5" x 14.2" x 7.5" (450 x 360 x 190 mm).

Documents
HP60KV_en_1.pdf (605.03 KB)

Included accessories

1 Interconnecting cable (control - high voltage modules)*
1 High voltage cable*
1 Return cable*
1 Protective ground cable*
1 Power cord
1 USB cable
1 Control module carrying bag
1 High voltage module carrying bag
1 User guide
1 T-Logger software
1 Tentech Remote Control app

* Supplied in different lengths on request



Remote control by Android device

This instrument has Bluetooth® interface and can be controlled remotely via an Android™ smartphone / tablet running the TENTECH's remote control application.

Google Play Logo

Go to Google Play Store

• Android™ and Google Play™ Store are trademarks of Google, Inc.
• Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.
